KR-431 glass eyepiece reticle. Grid 10mm x 10mm. 100 squares total (10x10). Labeled numbers horizontal (1-10) and letters vertical (A-J). Diagonal = 14.14mm. Av… Read more
SKU: KR431
Measurement: Metric
Square Size: 1mm
$125.00
icon Share icon Share
Request a quote
Description

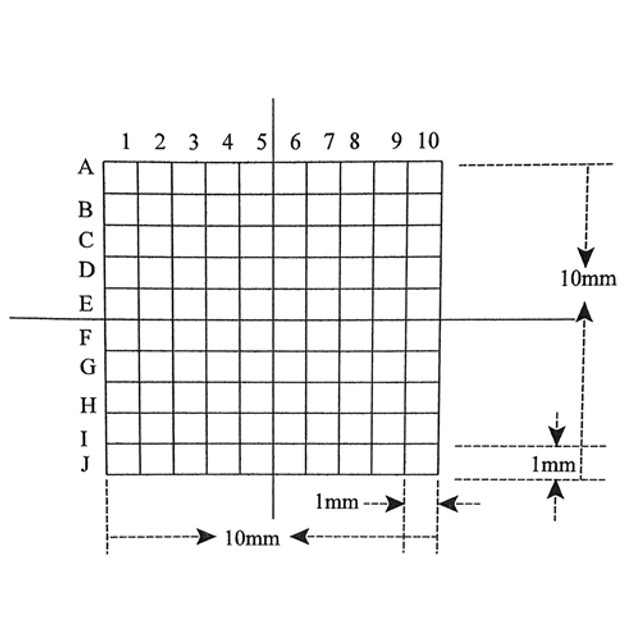

KR-431 glass eyepiece reticle. Grid 10mm x 10mm. 100 squares total (10x10). Labeled numbers horizontal (1-10) and letters vertical (A-J). Diagonal = 14.14mm. Available in a variety of diameters; select when ordering.

  • Each Square: 1mm when using 1x objective
  • Lines: Chrome deposition
  • Chamfer: 0.010" - 0.020"
  • Flatness: 2 waves or better
  • Centering: Within 0.005"
  • Glass Thickness: 1.5mm+/-0.2mm
  • Surface Quality: 20/10
  • Parallelism: 2 min.

NOTE: This is a special order product. Please allow 2-3 weeks for delivery. This item is not returnable.
