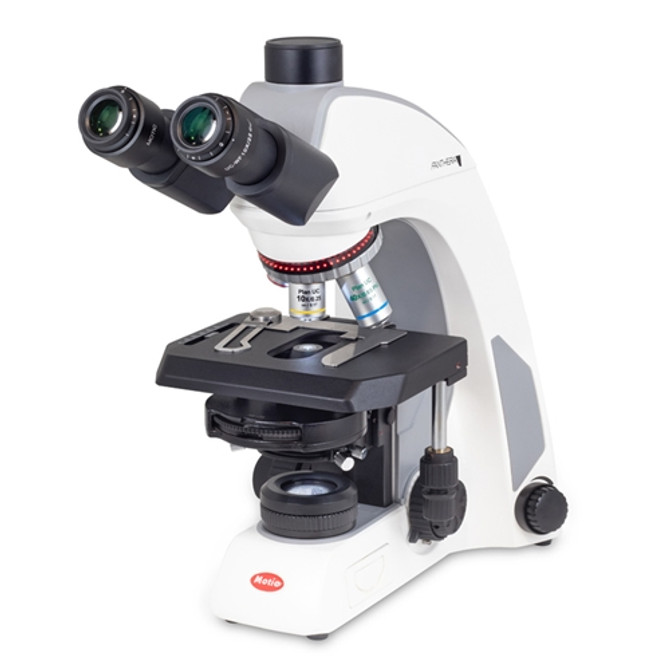

Motic Panthera C2 Full Turret Phase Trinocular Microscope
The Panthera C2 full turret phase microscope features a 5 position full phase contrast turret for Brightfield, Darkfield, Ph1, Ph2, Ph3 observation. The patente…Read more
The Panthera C2 full turret phase microscope features a 5 position full phase contrast turret for Brightfield, Darkfield, Ph1, Ph2, Ph3 observation. The patented rackless stage features a unique dual-slide holder allowing for one hand operation. Includes LED and halogen illumination.
Objective Lenses: CCIS UC Plan Achromatic objectives include your choice of the below configurations:
Viewing Head: Trinocular Siedentopf head inclined 25º, 360º swivel with fixed 50/50 beam splitter.
Eyepieces: UC-WF 10x / 22 focusing eyepieces, with diopter adjustment +/-5. Accepts 25mm diameter reticle. Interpupillary distance adjustable from 48-75mm.
Total Magnification: 40x, 100x, 400x, (optional 1000x), or full phase 100x, 200x, 400x, 1000x.
Specimen Stage: 185mm W x 145mm compact mechanical stage with built-in low position rackless coaxial stage control and double slide holder. Travel range X&Y 75 x 50 mm.
Focusing: Coaxial coarse and fine focusing with tension adjustment. Coarse focus drive is 25mm/rev, fine focus is 0.2mm/rev.

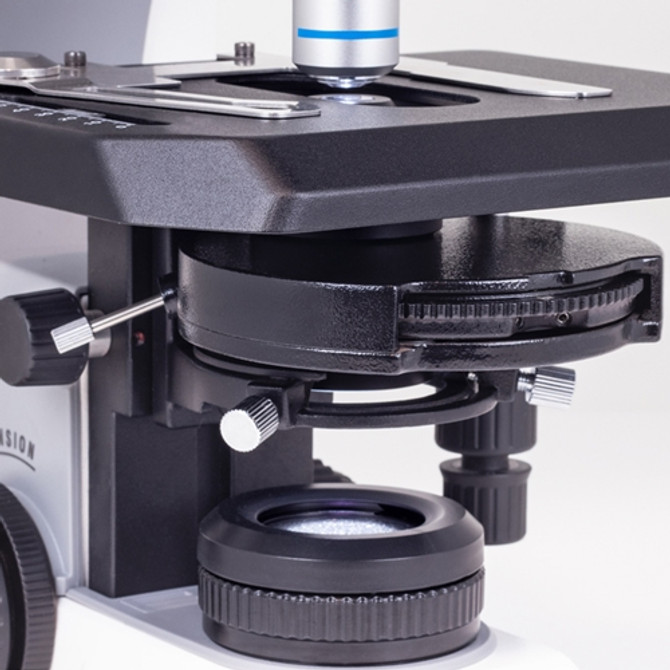

Condenser: Phase contrast turret condenser with BF/DF/Ph1/Ph2/Ph3.
Illumination: Koehler illumination with 3W LED and 6v 30w halogen lamp (easy to swap out). Corded 100~240V with cord storage on microscope frame. Light intensity control with LED intensity display on both sides of microscope. The Motic LightTracer features light memory, sleep mode (auto on-off) and nosepiece LED light intensity indicator. Certified: CE
Stand Features: Full Kohler, effective ergonomics and maximum expandability are built into this stand. The wide arm provides strength and rigidity. Additionally, the inverted "Y" support in the back of the microscope provides extra lateral stability. Built in USB 2.0 connectivity for external camera power or battery pack.
Size & Weight: 11.7" H x 8.3" W x 15.6" D, 18.5 lb.
Warranty: 5 Years, excluding electrical parts.
Includes: Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, phase centering telescope.
The Panthera C2 full turret phase microscope features a 5 position full phase contrast turret for Brightfield, Darkfield, Ph1, Ph2, Ph3 observation. The patented rackless stage features a unique dual-slide holder allowing for one hand operation. Includes LED and halogen illumination.
Objective Lenses: CCIS UC Plan Achromatic objectives include your choice of the below configurations:
Viewing Head: Trinocular Siedentopf head inclined 25º, 360º swivel with fixed 50/50 beam splitter.
Eyepieces: UC-WF 10x / 22 focusing eyepieces, with diopter adjustment +/-5. Accepts 25mm diameter reticle. Interpupillary distance adjustable from 48-75mm.
Total Magnification: 40x, 100x, 400x, (optional 1000x), or full phase 100x, 200x, 400x, 1000x.
Specimen Stage: 185mm W x 145mm compact mechanical stage with built-in low position rackless coaxial stage control and double slide holder. Travel range X&Y 75 x 50 mm.
Focusing: Coaxial coarse and fine focusing with tension adjustment. Coarse focus drive is 25mm/rev, fine focus is 0.2mm/rev.
Condenser: Phase contrast turret condenser with BF/DF/Ph1/Ph2/Ph3.
Illumination: Koehler illumination with 3W LED and 6v 30w halogen lamp (easy to swap out). Corded 100~240V with cord storage on microscope frame. Light intensity control with LED intensity display on both sides of microscope. The Motic LightTracer features light memory, sleep mode (auto on-off) and nosepiece LED light intensity indicator. Certified: CE
Stand Features: Full Kohler, effective ergonomics and maximum expandability are built into this stand. The wide arm provides strength and rigidity. Additionally, the inverted "Y" support in the back of the microscope provides extra lateral stability. Built in USB 2.0 connectivity for external camera power or battery pack.
Size & Weight: 11.7" H x 8.3" W x 15.6" D, 18.5 lb.
Warranty: 5 Years, excluding electrical parts.
Includes: Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, phase centering telescope.
